Location：Home > Product |
|
.JPG)

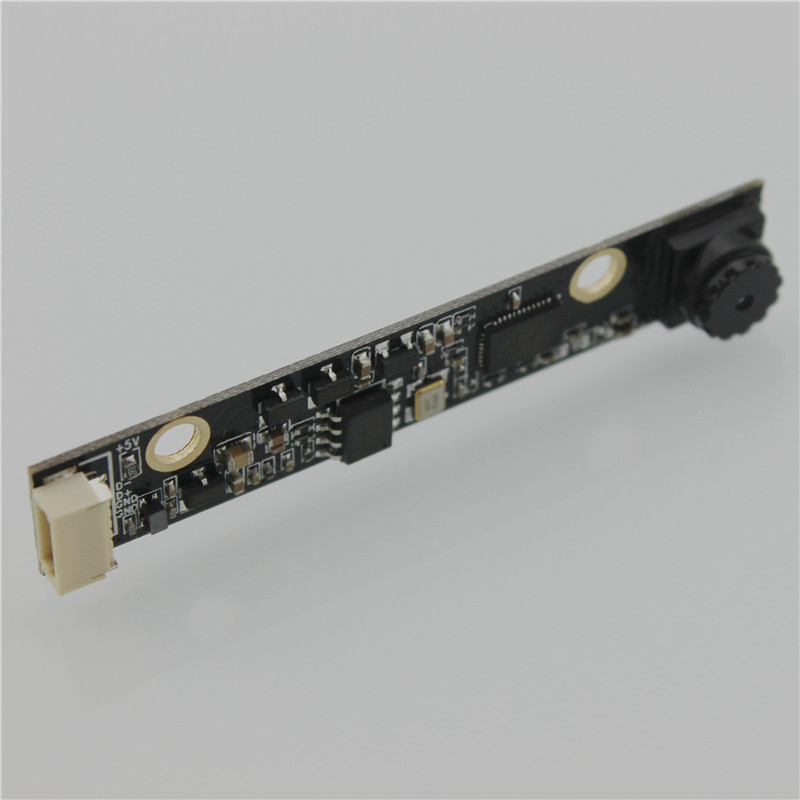

2.0MEGA 96366 with 90 degree rotation image
(1).jpg)

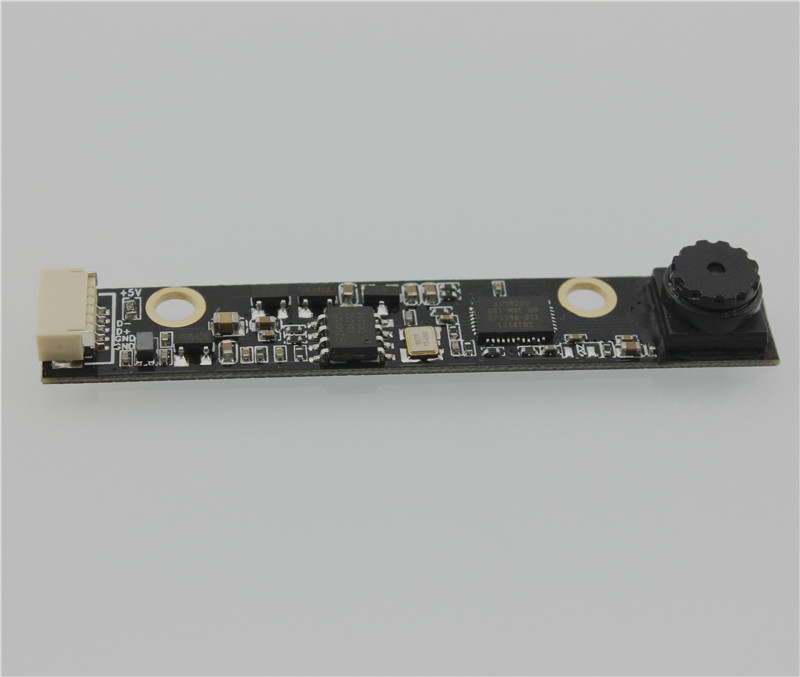

2.0MEGA 96366 with 90 degree rotation image
.JPG)

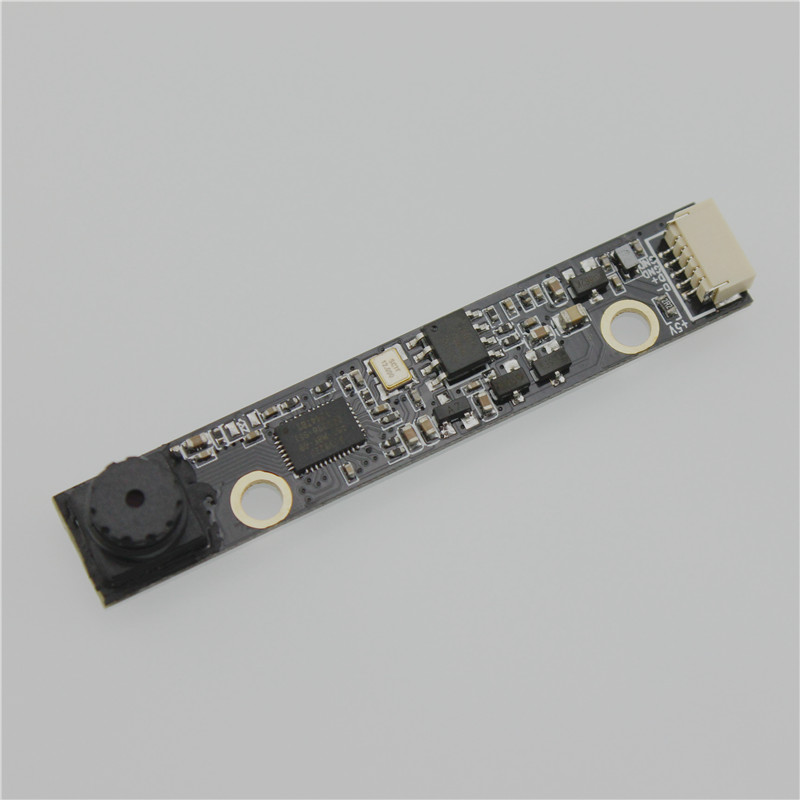

2.0MEGA 96366 with 90 degree rotation image
.JPG)

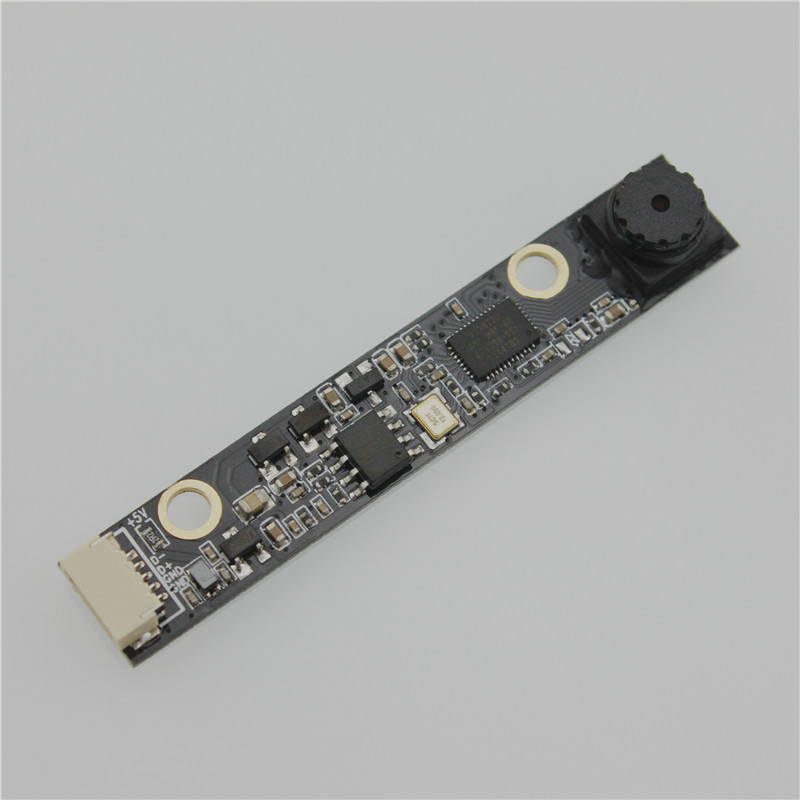

2.0MEGA 96366 with 90 degree rotation image
| Parameter |
SPEC. |
| Optical size Sensor |
1/4 inch COMS sensor |
| Sensor Resolution |
1600 (H) x 1200 (V),UXGA |
| Unit pixel size |
1.4um |
| Color filter |
RGB Bayer pattem |
| Shutter type |
Electronic Rolling Shutter |
| Max.capture frame rate |
15fps@full resolution, 15fps@UXGA, |
| Max. video frame rate |
30fps@VGA,25fps@720p |
| F Number |
2.5 |
| AEC / AGC/ White Balance |
Auto |
| Focus Distance |
with fixed lens 5CM- |
| Interface |
USB 2.0 |
| Power |
USB Bus Power |
| Dimensions (mm) (L x W x H) |
57.5mm x 10mm x6.3+/-0.2mm |
| Operating Temperature |
0℃to +50°C |
| Operating System Request |
Windows XP(SP2)/ Windows 7/ Windows 8(UVC), Linux(>V2.6.15 ) |
| Max pixel rate |
28Mp/s |
| ADC accuracy |
10-bit |
| USB 2.0 PHY |
On Chip |
| Power Consumption |
Standby |
4mA |
| |
Operating |
100mA士10mA @ 720P |
|
|
| |
|
