Location：Home > Product |
|
.JPG)

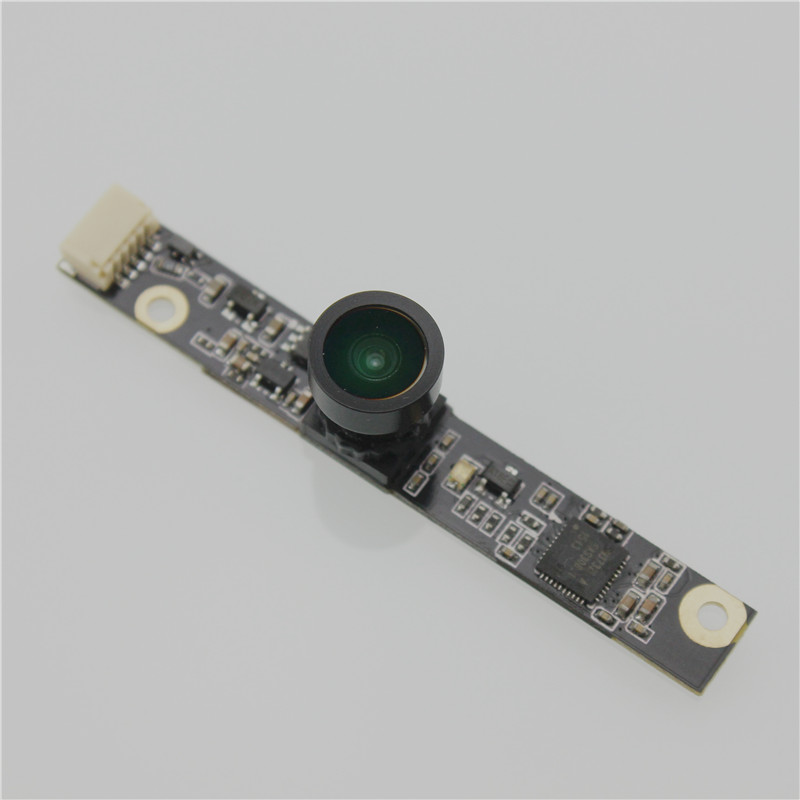

5.0MEGA 96368 with 114 degree fixed lens
(1).jpg)

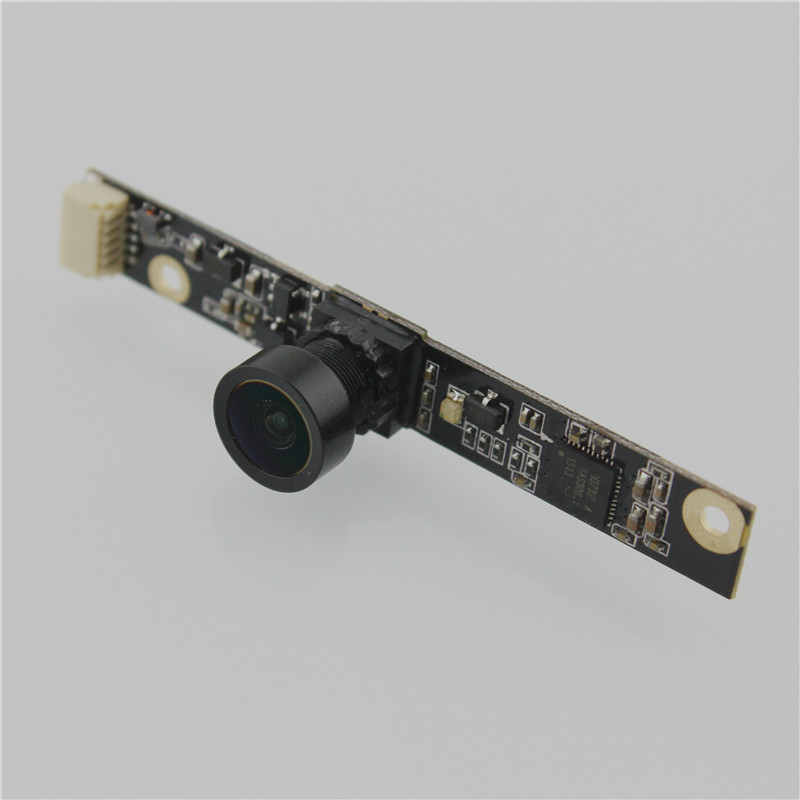

5.0MEGA 96368 with 114 degree fixed lens
.JPG)

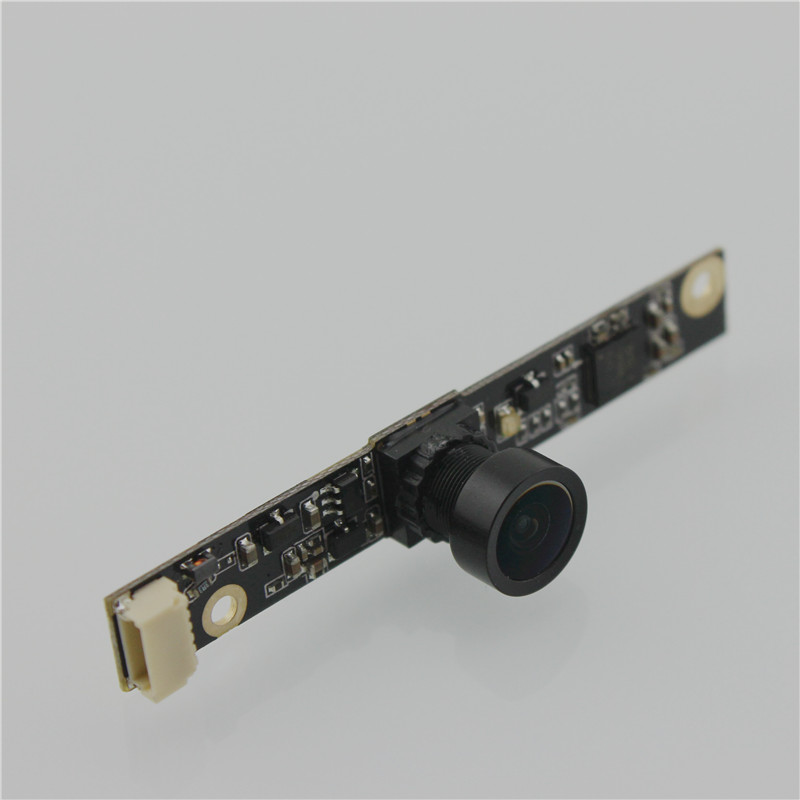

5.0MEGA 96368 with 114 degree fixed lens
.JPG)

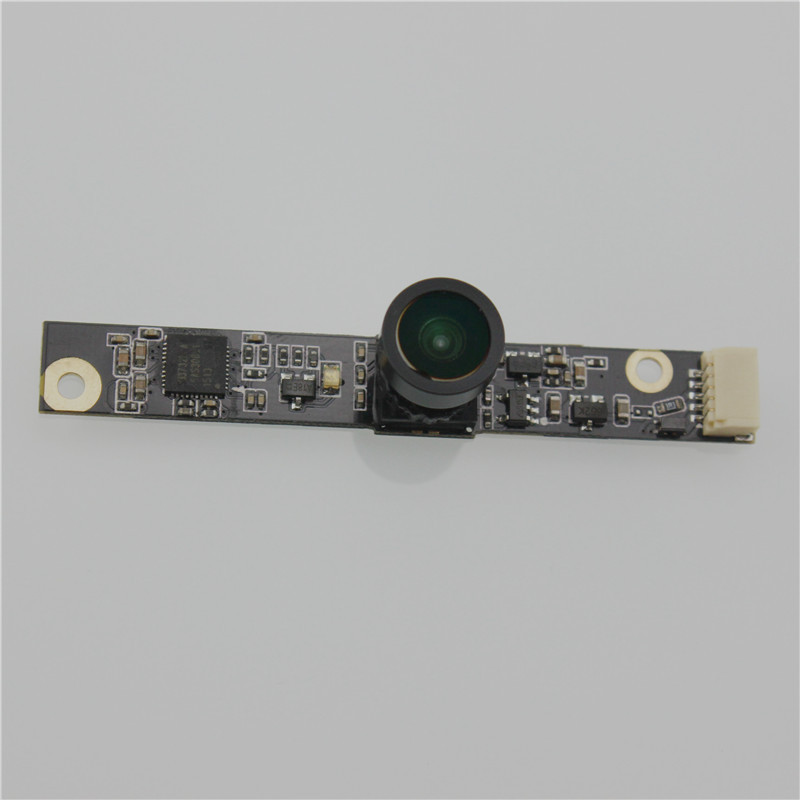

5.0MEGA 96368 with 114 degree fixed lens
| Parameter |
Specification |
| Optical size Sensor |
1/4 inch COMS sensor |
| Sensor Resolution |
2592 (H) x 1944 (V),QSXGA |
| Unit pixel size |
1.4um |
| Color filter |
RGB Bayer pattem |
| Shutter type |
Electronic Rolling Shutter |
| Max.capture frame rate |
15fps@full resolution, 15fps@UXGA 1600*1200 |
| Max. video frame rate |
30fps@VGA,25fps@720p |
| View Angle |
120° @ 800*600 |
| F Number |
2.8 |
| AEC / AGC/ White Balance |
Auto |
| Focus Distance |
with fixed lens 30 CM-∝ |
| Interface |
USB 2.0 |
| Power |
USB Bus Power |
| Dimensions (mm) (L x W x H) |
60mm x 9mm x 12.8 +/-0.2mm |
| Operating Temperature |
0℃to +50°C |
| Operating System Request |
Windows XP(SP2)/ Windows 7/ Windows 8(UVC), Linux(>V2.6.15 ) |
| Max pixel rate |
28Mp/s |
| ADC accuracy |
10-bit |
| USB 2.0 PHY |
On Chip PHY |
| Power Consumption |
Suspend |
90mA 士 5mA |
| |
Operating |
150mA 士 30mA @ 640x480 |
|
|
| |
|
