Location：Home > Product |
|
.JPG)

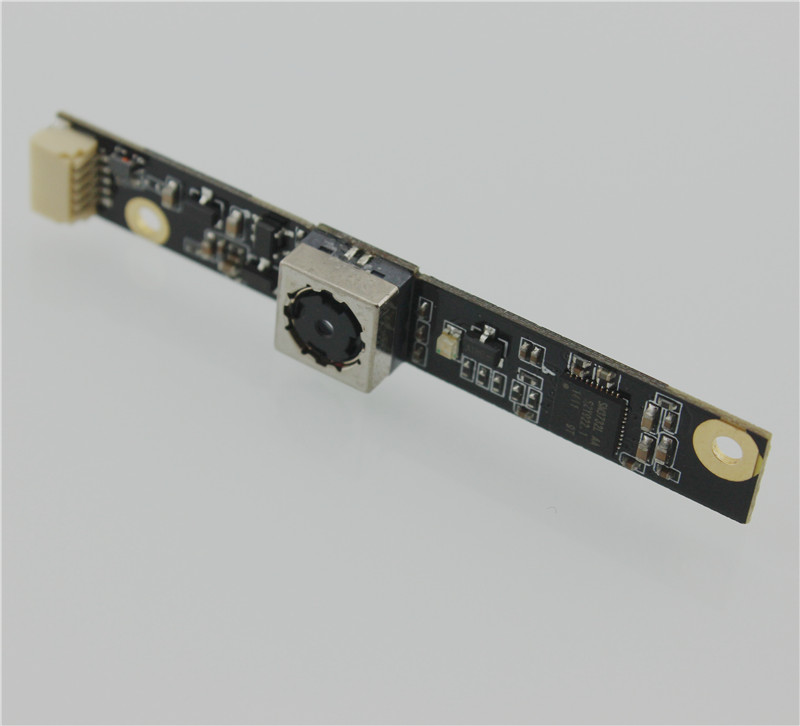

3.0MEGA 95999 with 65 degree auto-focus lens
.JPG)

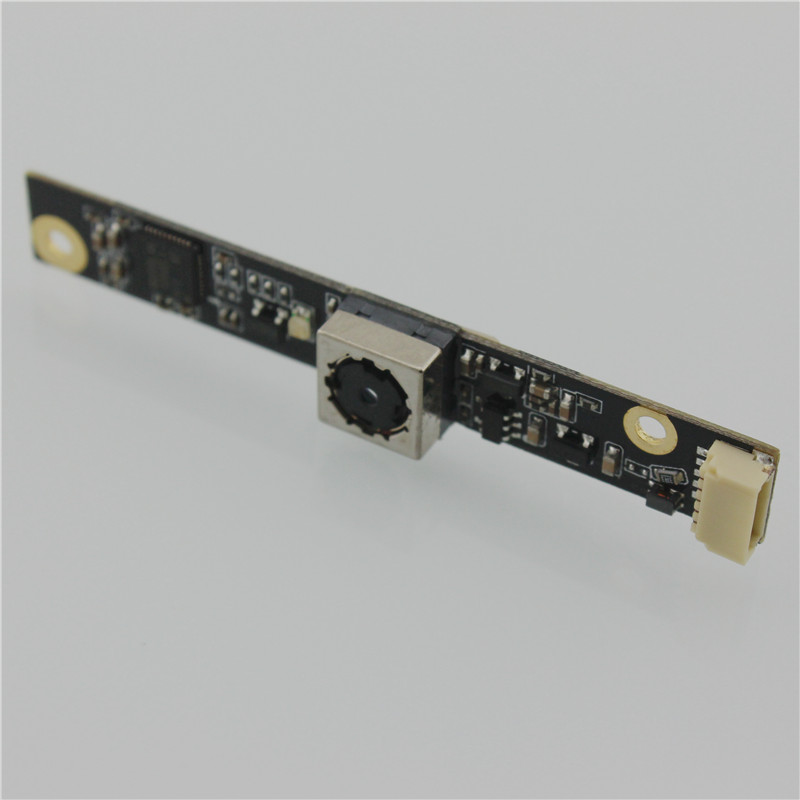

3.0MEGA 95999 with 65 degree auto-focus lens
.JPG)

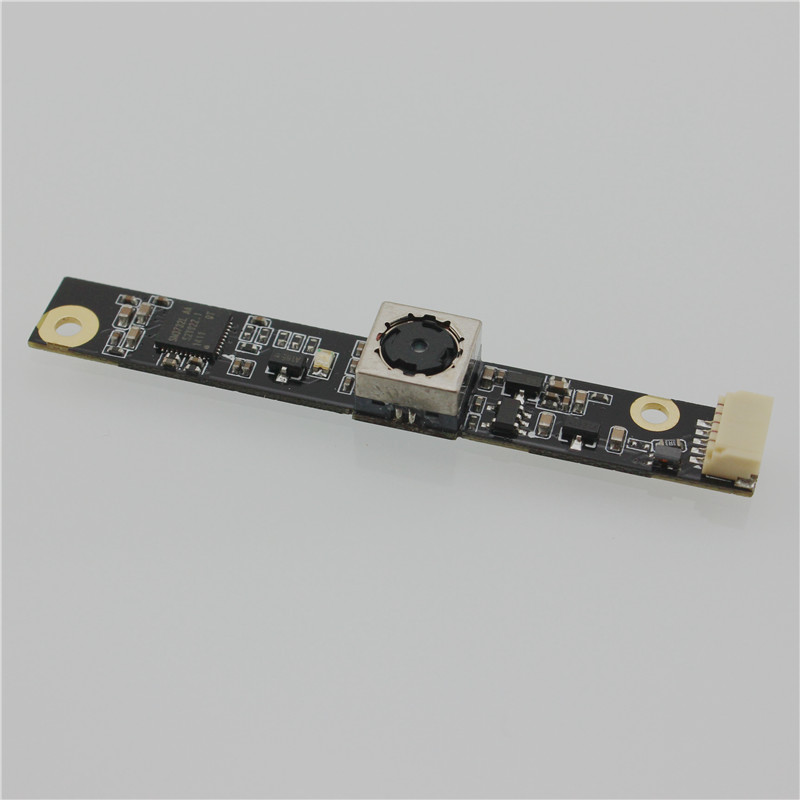

3.0MEGA 95999 with 65 degree auto-focus lens
(2).jpg)

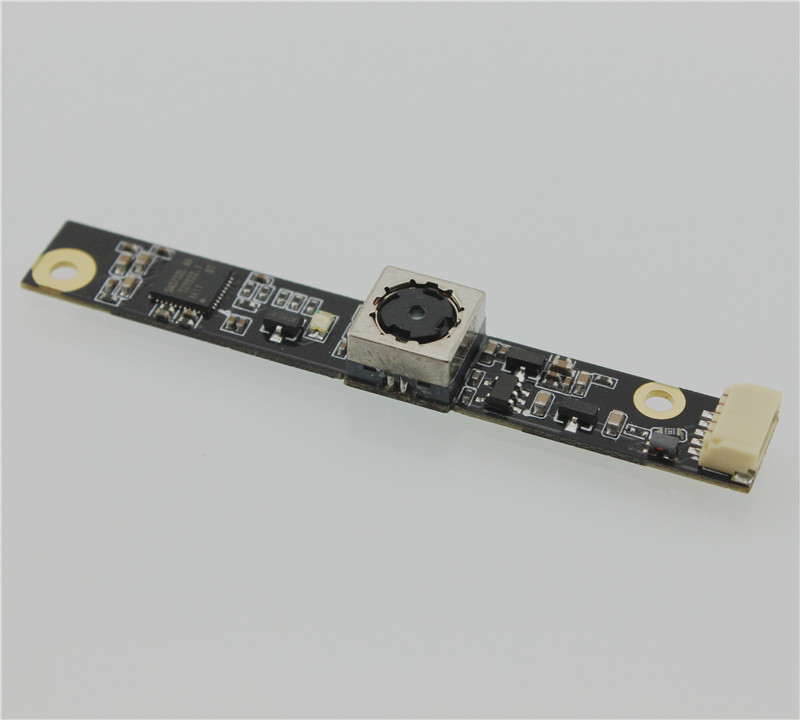

3.0MEGA 95999 with 65 degree auto-focus lens
| Parameter |
|
Specification |
| Optical size Sensor |
|
1/4 inch COMS sensor |
| Sensor Resolution |
|
2048(H) x 1536 (V) |
| Unit pixel size |
|
1.4um |
| Color filter |
|
RGB Bayer pattem |
| Shutter type |
|
Electronic Rolling Shutter |
| Max.capture frame rate |
|
15fps@full resolution, 15fps@1080P, |
| Max. video frame rate |
|
30fps-7.5fps |
| View Angle |
|
65.3° |
| F Number |
|
2.9 |
| AEC / AGC/ White Balance |
|
Auto |
| Focus Distance |
|
AUTO-FOCUS 10cm--∝ |
| Interface |
|
USB 2.0 |
| Power |
|
USB Bus Power |
| Dimensions (mm) (L x W x H) |
|
60mm x 9mm x5.2+/-0.2mm |
| Operating Temperature |
|
0℃to +50°C |
| Operating System Request |
|
Windows XP(SP2)/ Windows 7/ Windows 8(UVC), Linux(>V2.6.15 ) |
| Max pixel rate |
|
28Mp/s |
| ADC accuracy |
|
10-bit |
| USB 2.0 PHY |
|
On Chip PHY |
| Power Consumption |
Suspend |
90mA 士 5mA |
| |
Operating |
150mA 士 30mA @ 640x480 |
|
|
| |
|
