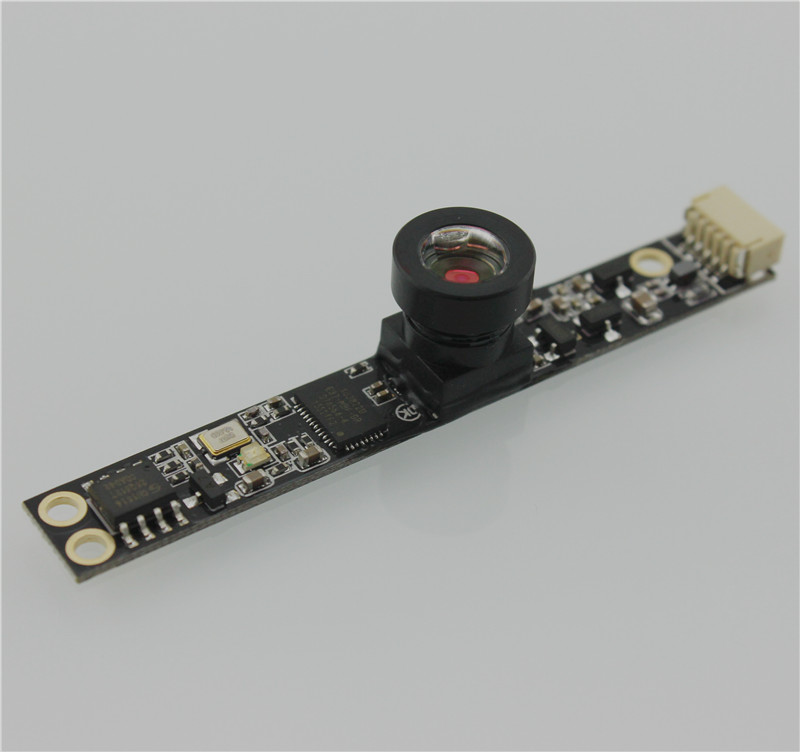

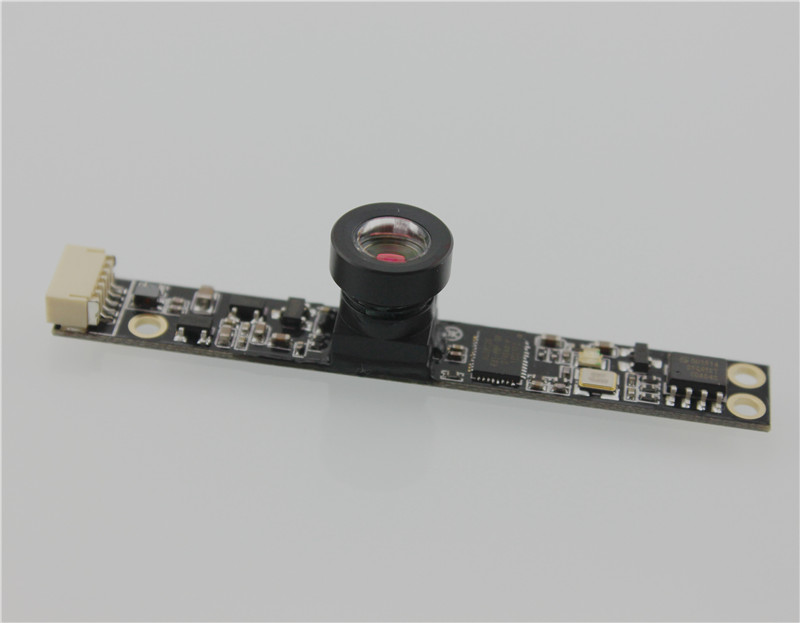

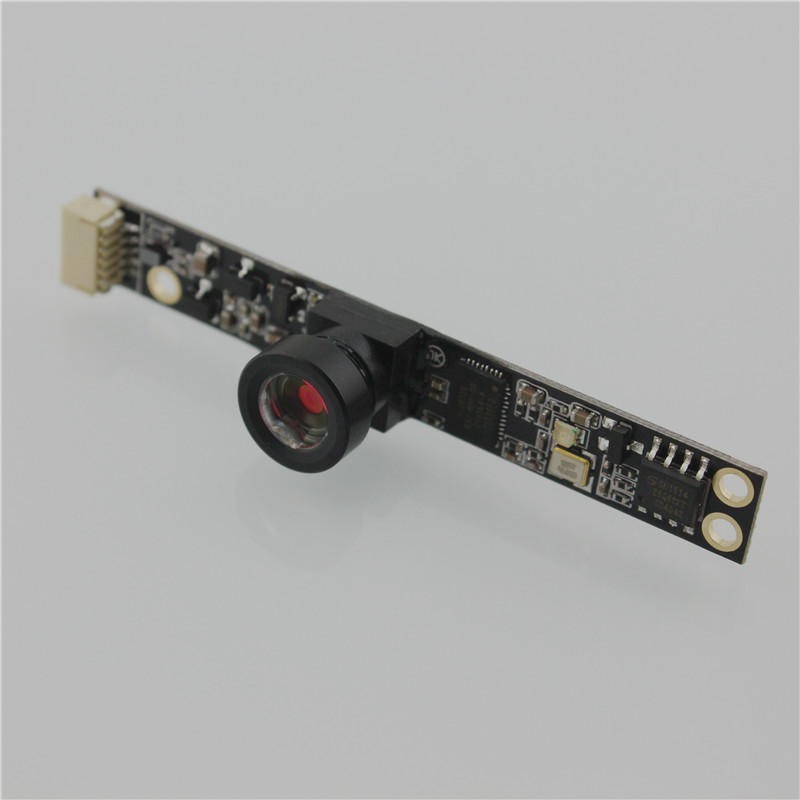

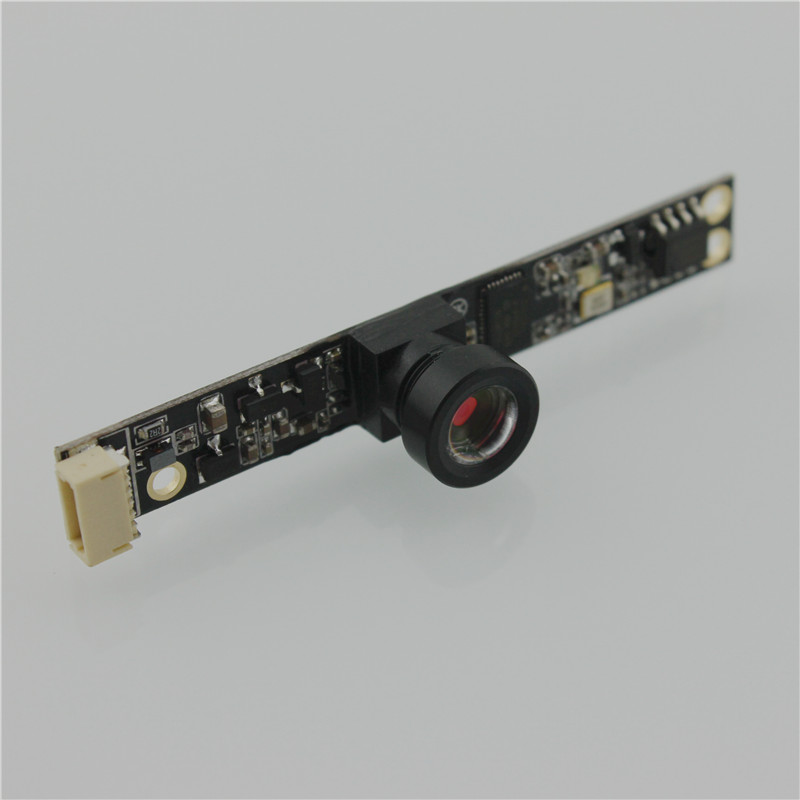

2.0MEGA 95951 with 76 degree fixed lens
.JPG)
2.0MEGA 95951 with 76 degree fixed lens
.JPG)
2.0MEGA 95951 with 76 degree fixed lens
.JPG)
2.0MEGA 95951 with 76 degree fixed lens
| Parameter |
Specification |
| Optical size Sensor |
1/4 inch COMS sensor |
| Sensor Resolution |
1600(H) x 1200 (V),UXGA |
| Unit pixel size |
1.4um |
| Color filter |
RGB Bayer pattem |
| Shutter type |
Electronic Rolling Shutter |
| Max.capture frame rate |
15fps@full resolution, 15fps@UXGA, |
| Max. video frame rate |
30fps@VGA,25fps@720p |
| View Angle |
74° @ 800*600 |
| F Number |
3.0 |
| AEC / AGC/ White Balance |
Auto |
| Focus Distance |
with fixed lens 5CM-∝ |
| Interface |
USB 2.0 |
| Power |
USB Bus Power |
| Dimensions (mm) (L x W x H) |
60mm x 8mm x13.04 +/-0.2mm |
| Operating Temperature |
0℃to +50°C |
| Operating System Request |
Windows XP(SP2)/ Windows 7/ Windows 8(UVC), Linux(>V2.6.15 ) |
| Max pixel rate |
28Mp/s |
| ADC accuracy |
10-bit |
| USB 2.0 PHY |
On Chip PHY |
| Power Consumption |
Standby |
4mA |
| |
Operating |
100mA士10mA @ 720P |
|
|
| |
|
