Location：Home > Product |
|
.JPG)

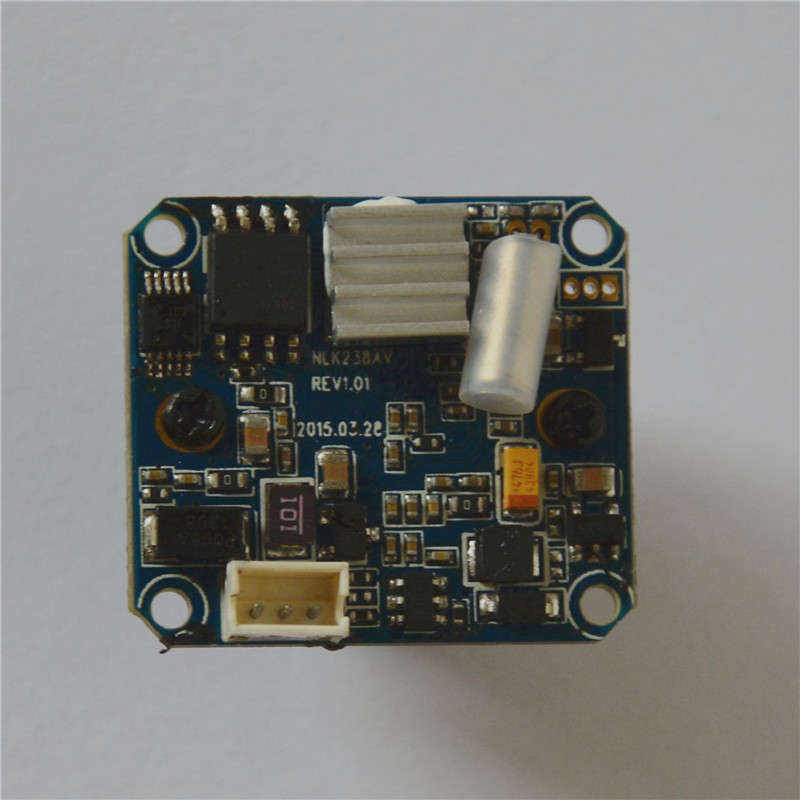

SL-SONY 520TVL B/W CCD
.JPG)

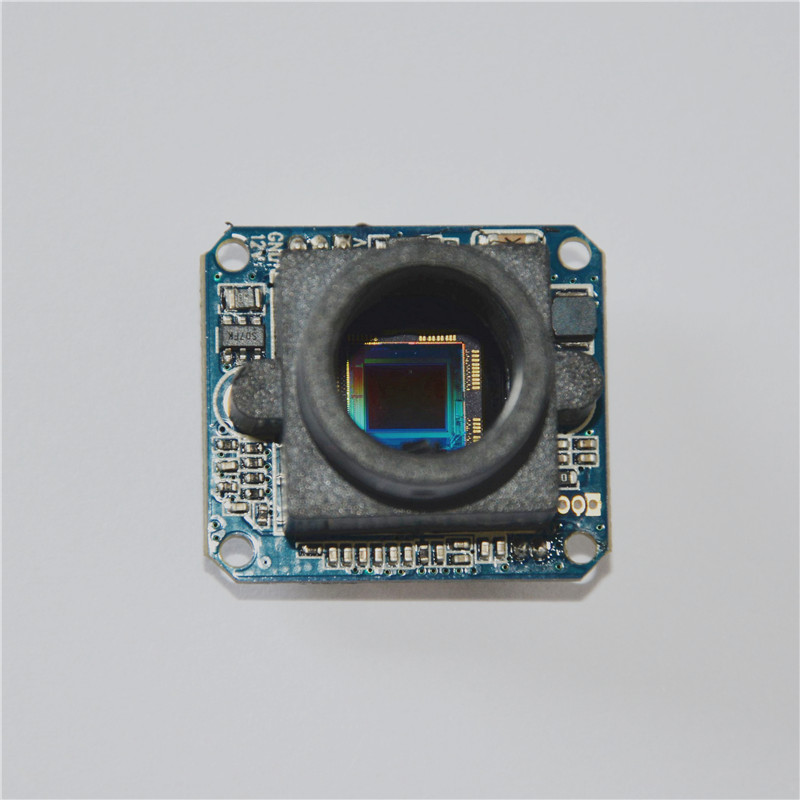

SL-SONY 520TVL B/W CCD
.JPG)

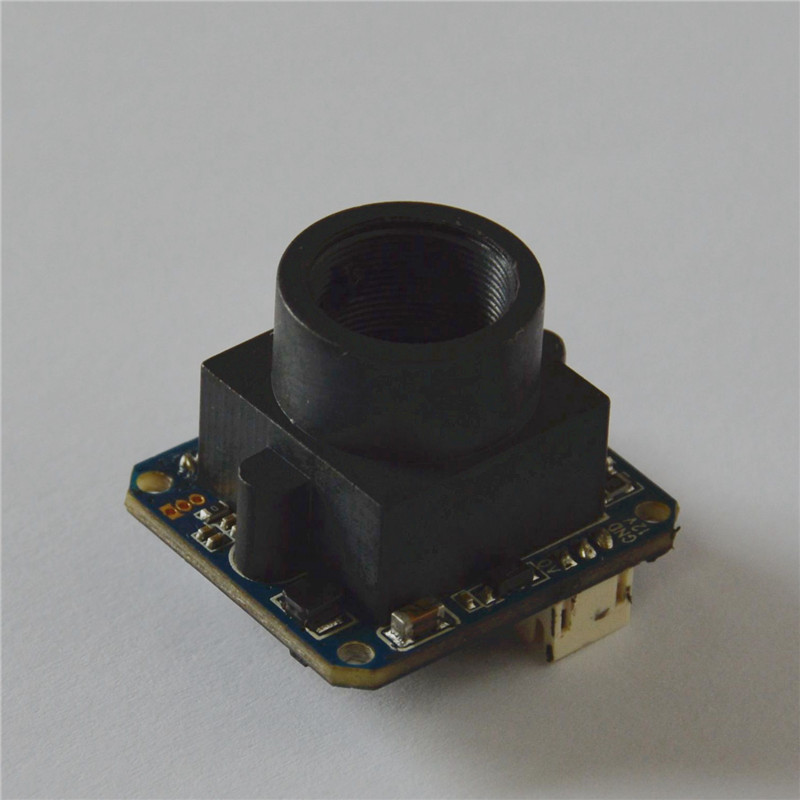

SL-SONY 520TVL B/W CCD
(1).jpg)

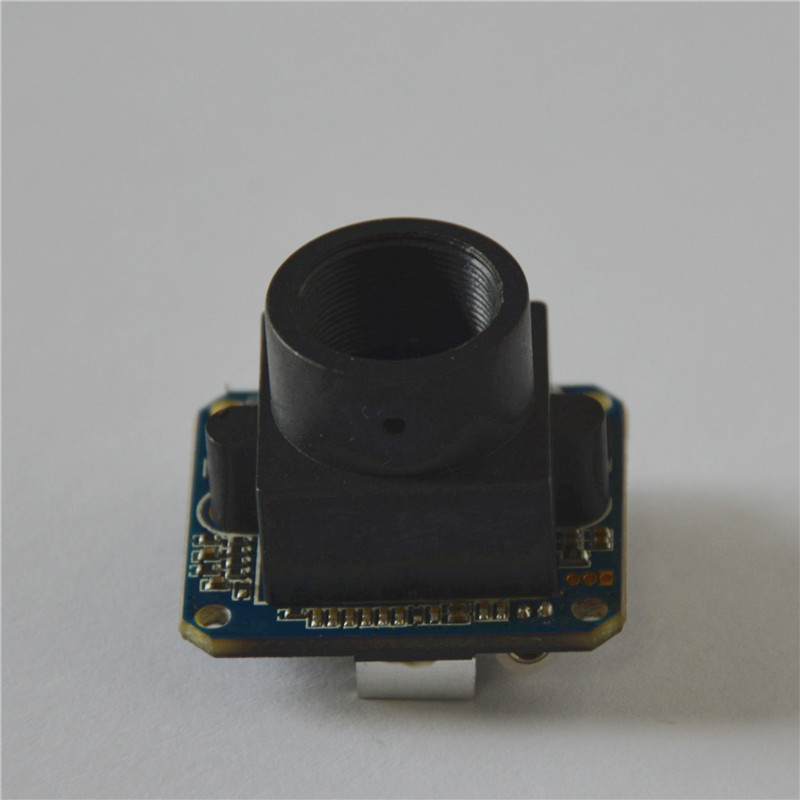

SL-SONY 520TVL B/W CCD
| No. |
Items |
Description |
| 1 |
Image sensor |
1/3inch CMOS |
| 2 |
Image system |
PAL、NTSC |
| 3 |
Effective pixels |
1280(H)*1024(V) |
| 4 |
Sync method |
Internal Sync |
| 5 |
Horizontal resolution |
800TVL（4：3 ）,600TVL(16:9) |
| 6 |
Pixel size |
3.75um*3.75um |
| 7 |
SNR |
＞ 68dB (AGC OFF) |
| 8 |
Min brightness |
0.1LUX(F:1.2) |
| 9 |
Exposure system |
AWB(automatically white balance) , Automatically backlight compensation, 、Automatically AGC、3D noise reduction |
| 10 |
WDR (wide dynamic) |
120DB |
| 11 |
Electronic shutter |
1/25-1/12000S |
| 12 |
Gamma correction |
>0.45 |
| 13 |
Video output |
1.0±0.2Vp-p/ 75 ohm |
| 14 |
Frame rate |
25FPS（PAL）/30FPS（NTSC） |
| 15 |
Input voltage |
+5V～+15V （Standard：DC12V ±25%） |
| 16 |
Power consumption |
Current:100mA±10mA ( DC+12V) |
| 17 |
Working environment temperature |
-20℃ ～ 60 ℃ |
| 18 |
Storage environment temperature |
-30℃ ～ 80℃ |
| 19 |
Humidity |
5~95% RH |
| 20 |
The lens and loading spec. |
Focal length：3.6mm±5% |
| |
|
Diagonal angle ：90 degree±10% |
| |
|
Focal distance :40cm(close-focusing );1.5M(far-focus ) |
| |
|
Opposite distortion ：<-28.7% |
|
|
| |
|
